First, verify all safety switches—seat, brake/clutch, and PTO interlock—are engaged and have continuity; a faulty switch cuts power. Next, inspect the battery terminals, measure static voltage (12.7 V is healthy), and test capacity by charging and cranking; replace it if it drops to 1.9–2.0 V after shutdown. Then, check the fuel system: guarantee the vent is clear, look for cracks in the pulse tube, and drain the tank for stale fuel or water. After that, examine the spark plug, coil resistance, and kill‑wire spark. Finally, confirm the oil level is between the marks to avoid low‑oil shutdown. If you keep going, you’ll ascertain more detailed fixes.
Make Sure Safety Switches Aren’t Stopping the Engine
If the mower won’t crank, first verify that none of the safety switches are cutting power. Check the seat safety switch under the seat; a faulty switch will stop the engine even when you’re seated. Use a multimeter to test continuity, then disconnect the harness and snap a new switch into the frame as part of the switch replacement process. Next, inspect the brake/clutch safety switch near the pedal; guarantee the white contacts close when the pedal is depressed. Test by jumping the wires to the starter terminal; if the mower cranks, the switch is bad and needs replacement. Finally, examine the PTO/blade interlock switch under the control lever; remove the old part by depressing tabs, install the new 532197802 unit, and reconnect the wiring. Address any seat adjustment issues that prevent proper switch engagement to avoid intermittent no‑start symptoms. Lift up the hood before beginning the replacement to gain clear access to the interlock switch. Also, be sure to have a clean oil container ready for any oil you may need to drain during the process. Follow the pre‑run checklist before the first start to verify that the deck is securely attached and the blade height is set correctly.
Battery Health Check for an Engine That Won’t Start
After confirming the safety switches aren’t cutting power, turn your attention to the battery—vibrations from mower operation often loosen terminals and drain cells. Inspect the terminals with an 11 mm socket, confirming the red lead attaches to the positive terminal and the black lead to the negative. Tighten any loose connections; a clicking sound indicates poor contact. Set a multimeter to DC and measure static voltage; a healthy unit holds 12.7 V, dropping no below 11.5 V under load. Perform storage capacity determination by charging for 8 hours, then cranking and noting voltage sag; excessive drop signals cell failure. Remember temperature impact on batteries—cold reduces voltage output, while heat accelerates self‑discharge. Replace the battery if voltage falls to 1.9–2.0 V after engine shutdown. Use the 13 mm socket to secure the top bracket after battery removal. Proper charging cycles can significantly extend the service life of a lawn mower battery. Improper storage temperatures can also accelerate self‑discharge, shortening overall battery lifespan.
Fuel System Checks When Your Engine Won’t Start
When the engine refuses to turn over, the fuel system is often the culprit, so you’ll need to verify that fuel can travel from the tank to the carburetor without obstruction. Begin with a fuel tank inspection: remove the cap, crank the mower, and watch for fuel flow; a clogged vent will starve the carburetor. If flow stops, disconnect the fuel line at the carburetor and direct it into a container while cranking—no stream signals a pinched, reversed, or blocked line, or a failed pump. Examine the pulse tube for cracks; a split tube halts pump action. Drain the tank to check for stale fuel or water, then replace it with fresh gasoline and add fuel stabilizer usage to prevent future gumming. Reassemble, ensuring all connections are secure and the vent is clear before testing again. The mower has been stored inside for most of its life, which helps keep the carburetor clean. Regularly cleaning the carburetor can also mitigate issues caused by environmental dust buildup.
Ignition and Spark Tests for a Non‑Starting Engine

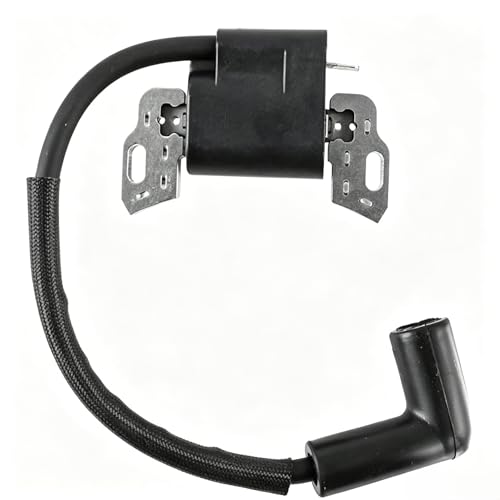

Even though the fuel system may be clear, a non‑starting Craftsman mower often fails because the ignition circuit isn’t delivering a spark. Begin by removing the spark plug, unhook the wire, and twist it out. Inspect the electrodes for wear or carbon buildup; clean the plug thoroughly before testing resistance with a multimeter set to ohms. Ground the plug base against the cylinder head and pull the starter rope; a bright blue spark confirms a good plug. If the spark is weak or absent, move to ignition coil diagnosis. Locate the coil near the flywheel, check for cracks, burn marks, and verify the 0.010‑0.014‑inch air gap. Disconnect the kill wire, attach a spark tester between the ignition cable and plug, and spin the flywheel to at least 350 RPM. Consistent sparks indicate a functional coil; no spark points to coil, wiring, or module failure. Finally, measure coil primary (0.5‑2 Ω) and secondary (5 k‑20 k Ω) resistances; infinite or zero readings mean the coil must be replaced. Regular replacement of the spark plug ensures reliable ignition. Proper blade angle during sharpening also helps maintain overall mower performance. Properly tightening the spark plug prevents air leaks and ensures optimal compression. Use a torque wrench to achieve the manufacturer‑specified tightness.
Verify Oil Level to Avoid Low‑Oil Shutoff
Ever wonder why a perfectly healthy Craftsman mower still won’t start? First, park the mower on level ground, shut the engine off, and locate the dipstick or sight glass. Pull the stick, wipe it clean, reinsert, and read the oil level against the minimum and maximum marks. If it’s below the minimum, add the manufacturer‑specified oil grade, then re‑check to confirm a proper fill. While you’re at it, check for sensor failures: a low‑oil safety sensor can shut the engine off even with adequate oil if pressure is low. Monitor oil consumption patterns; frequent top‑ups, blue smoke, or rapid level drop signal internal wear. Document each check to spot abnormal consumption before the sensor triggers a false shutdown. Disconnecting the low oil sensor is common on mini bikes and go‑carts, and can prevent unnecessary shutdowns in recreational vehicles.
Test the Starter Solenoid and Wiring
One of the quickest ways to confirm whether the starter solenoid is functional is to measure the voltage at each of its four terminals while the key is in the start position. First, set your multimeter to DC volts and probe the big red constant‑12 V wire; you should read about 12 V with the key off. Next, wiggle the key to start and check the white signal wire—12 V should appear only in that position. Verify the small ground wire shows near zero volts (good ground). Finally, measure the output post that feeds the starter motor; it should jump to 12 V when the solenoid engages. If any of these solenoid voltage checks fail, inspect solenoid connections for corrosion, loose plugs, or melted ignition‑switch contacts before replacing the unit. Check the implement lever switch for proper operation before proceeding. Use a multimeter to verify continuity of the solenoid’s internal coil before testing voltage. Understanding grass growth cycles helps schedule mower maintenance during peak seasonal activity. Additionally, cleaning the reel can prevent the starter cord from jamming again.
Clean or Replace the Carburetor
If the engine sputters or refuses to start, the carburetor is likely clogged or mis‑adjusted, so you’ll need to clean or replace it. First, take a photo for reference, then disconnect the spark plug and remove the cover and air filter. Inspect spark plug condition; a fouled plug often indicates carburetor issues. Detach the fuel linkage and line, then unbolt the carburetor with a 10 mm socket. Disassemble from the bottom—bowl, float, needle, main jet—using needle‑nose pliers and note spring positions. Spray carburetor cleaner on each part, soak stubborn deposits, and blow orifices with compressed air. Replace gaskets, reassemble using your reference photo, re‑attach fuel components, and inspect choke adjustment before reinstalling the spark plug and air filter. Start the mower to verify proper operation. The main jet may need to be removed with a micro drill bit if it is stuck. The carburetor is typically mounted near the engine’s side or rear and is attached to the intake manifold and fuel line. Spray carburetor cleaner into the fuel line and vent while the engine is off to dissolve internal blockages.
Inspect Blade and Deck for Physical Obstructions That Prevent Cranking
Even when the engine turns over, a blocked blade or deck can stop the mower from cranking; you’ll need to inspect the under‑deck area for any material—grass clippings, twigs, wet mats, rocks, or metal fragments—that may be binding the blade or obstructing the pulleys. First, disconnect the spark plug and tilt the mower to access the deck. Remove the blade, then sweep out accumulated clippings, twigs, and wet mats that can jam the spindle. Examine the deck for rocks or metal shards that could embed in the surface. Next, check the belt path and pulleys; look for clogged chute components and any signs of damaged pulleys, such as oval shafts, rust, or worn bearings. Clear debris, replace bent or damaged pulleys, and verify belt alignment before reassembling. This systematic inspection eliminates the physical resistance that prevents cranking. Proper lifting technique also reduces the risk of injury when handling the mower’s heavy deck. Technician frustrated by the late‑night call. For reliable cutting performance, ensure the deck is level using a carpenter’s level before reassembly. Follow the five‑step method in the guide for safe blade removal to protect yourself and the equipment.
Troubleshooting Flowchart for a No‑Start Engine
A clear, step‑by‑step flowchart lets you isolate the exact cause of a mower that won’t start by moving systematically through fuel, ignition, air, electrical, and safety subsystems. Begin with the fuel block: drain old fuel, then check lines for clogs and validate the primer bulb works. If fuel passes, move to ignition; remove the spark plug, inspect for fouling, clean or replace it, and confirm a strong spark with the kill wire disconnected. Next, address the air system: clean air filter, guarantee the housing is free of oil and debris, and confirm no intake blockages. Then test the electrical side: measure battery voltage, clean terminals, inspect fuses and wiring, and verify starter continuity. Finally, verify safety switches—brake pedal, clutch, operator presence, ignition switch, and flywheel brake—are correctly engaged or released. Follow each decision node to pinpoint the failure quickly. Oil flooding can be identified by a fouled spark plug and oily air filter. Stale fuel can cause poor combustion and should be drained and replaced before testing further. A weak battery can also prevent starting, so check the voltage output before proceeding. Proper primer bulb ensures fuel reaches the carburetor efficiently.
When to Call a Pro for Engine Problems
Often, persistent starting problems that survive spark‑plug, air‑filter, and oil checks indicate deeper engine faults that DIY fixes can’t resolve. When you hear grinding or knocking, notice excessive vibration, or see smoke, those signs point to rare engine issues that demand professional triage. If the mower won’t turn over after you’ve cleared fuel line blockages, suspect hydro lock or a seized crankcase; only a technician can safely release pressure and replace gaskets. Overheating from a blocked fan or air intake, persistent power loss after fresh fuel, and abnormal carburetor behavior (e.g., NIKKI to Walbro switch problems) also exceed home repair capabilities. Call a certified service center at once to avoid irreversible damage and guarantee proper diagnostic tools are used. Check compression stroke is essential before assuming the issue is merely a spark plug problem. A weak or dead battery can also prevent the engine from cranking properly, so testing the battery voltage before other diagnostics is advisable.
